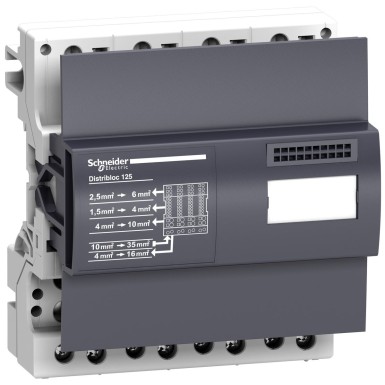

LVS04045 - Linergy DX - 4P jaotur - 125 A (Distribloc) - Schneider Electric - Linergy DX - 4P jaotur - 125 A (Distribloc) - Schneider Electric - 0
LVS04045 - Linergy DX - 4P jaotur - 125 A (Distribloc) - Schneider Electric - Linergy DX - 4P jaotur - 125 A (Distribloc) - Schneider Electric - 0
Tellimisel

LVS04045 – Schneider Electric

EAN: 3606481870896
64,53 € KM-ta
80,02 € KM-ga
Linergy DX - 4P jaotur - 125 A (Distribloc) - Schneider Electric
 Korvis
80,02 €
SPETSIFIKATSIOONID
Main
Accessory category Power distribution accessory
product range Linergy
Range Linergy
[ipk] rated peak withstand current 20 kA
type of product or equipment Distributor
i²t at switch-on 20250000 A².s
Product Name Linergy DX
[ui] rated insulation voltage 750V CA
product installed Acti 9: fixed C120 with earth leakage protection - control: by toggle
Acti 9: fixed C120 without
earth leakage protection - control: by toggle Acti 9: fixed iC120 with earth leakage protection - control: by toggle
Acti 9: fixed iC120 without earth leakage protection - control: by
toggle ComPacT: fixed INS40 - control: direct front rotary handle - vertical installation
ComPacT: fixed INS63 - control: direct front rotary handle - vertical installation
ComPacT: fixed INS100 - control: direct front rotary handle - vertical installation
ComPacT: fixed INS125 - control : direct front rotary handle - vertical installation
ComPacT: fixed INS160 - control: direct front rotary handle - vertical installation
Multi 9: fixed NG125 with earth leakage protection - control: by toggle
Multi 9: fixed NG125 without earth leakage protection - control: by toggle
Multi 9: fixed NG125 NA - control: by Toggle ComPacT
: fixed NG160 with earth leakage protection - control: by
toggle ComPacT: fixed NG160 without earth leakage protection - control: by
toggle ComPacT: fixed NG160 NA without earth leakage protection - control: by
toggle ComPacT: fixed NSXm without earth leakage protection - control: by toggle - vertical installation
ComPacT: fixed NSXm with earth leakage protection - control: by toggle - vertical installation
Complementary
9 mm pitches 12
[ie] rated operational current 125 A at 40 °C
[ue] rated operational voltage 690V CA
range compatibility PrismaSeT (PrismaSeT G)
PrismaSeT housing (PrismaSeT P)
PrismaSeT housing (Prisma PH)
PrismaSeT housing (PrismaSeT Pack 160)
PrismaSeT housing (PrismaSeT Pack 250) housing
[icw] rated short-time withstand current 4,5 kApour 1s
Handle front plate colour 127 mm
[uimp] rated impulse withstand voltage 8 kV
product weight 0,5 kg
connection mode Power supply: cage type terminal 35 mm² (rigid)
Power supply: cage type terminal 35 mm² (flexible)
Distribution: spring terminal, 2 x4…10 mm² (flexible)
Distribution: spring terminal, 2 x4…10 mm² (rigid)
Distribution: spring terminal, 3 x2.5…6 mm² (flexible)
Distribution: spring terminal, 3 x2.5…6 mm² (rigid)
Distribution: spring terminal, 7 x1.5…4 mm² (flexible)
Distribution: spring terminal, 7 x1.5…4 mm² (rigid)
Distribution: box type terminal, 1 x4…16 mm² (flexible)
Distribution: box type terminal, 1 x4…25 mm² (rigid)
width (w) 108 mm
Colour Gris anthracite (RAL 7016)
depth 48 mm
mounting bracket DIN rail
Poles description 4P
Environment
degree of pollution 3
degree of protection (ip) IPxx B
product certificates TO STAY
standards IEC 60947-7-1
IEC 61439-1, indoor enclosure IEC 61439-2, indoor
enclosure
operating ambient air temperature -25…55 °C
held by incandescent wire 960 °C conforming to IEC 60695-2-11
