LVS03287 - PrismaSeT G Active - INS-INV320/630 esiplaat - 6M - L850 - horisontaalne - fikseeritud - Schneider Electric - PrismaSeT G Active - INS-INV320/630 esiplaat - 6M - L850 - horisontaalne - fikseeritud - Schneider Electric - 0
LVS03287 - PrismaSeT G Active - INS-INV320/630 esiplaat - 6M - L850 - horisontaalne - fikseeritud - Schneider Electric - PrismaSeT G Active - INS-INV320/630 esiplaat - 6M - L850 - horisontaalne - fikseeritud - Schneider Electric - 0
Tellimisel

LVS03287 – Schneider Electric

EAN: 3606481872036
37,58 € KM-ta
46,60 € KM-ga

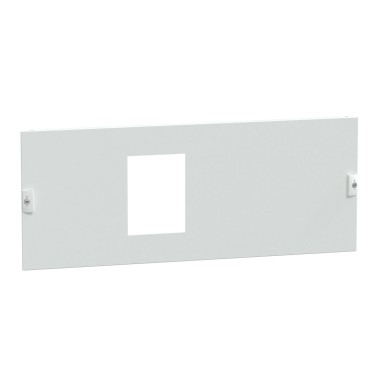

PrismaSeT G Active - INS-INV320/630 esiplaat - 6M - L850 - horisontaalne - fikseeritud - Schneider Electric
 Korvis
46,60 €
SPETSIFIKATSIOONID
Main
Accessory category Installation accessory
product range PrismaSet G
Range PrismaSet
type of product or equipment Chestplate
type of breastplate Cutting
product installed ComPacT: fixed INS320 to 400 - control: direct front rotary handle - horizontal installation
ComPacT: fixed INS500…630 - control: direct front rotary handle - horizontal installation
ComPacT: fixed INV320 to 400 - control: direct front rotary handle - horizontal installation
ComPacT: fixed INV500…630 - control: direct front rotary handle - horizontal installation
Complementary
range compatibility PrismaSeT (PrismaSeT G) housing
surface finish Matte
Textured
description of the box/cabinet Cabinet - width 850 mm
batch quantity Pack of 1
Handle front plate colour 300 mm
connection position Connection block
product weight 1,94 kg
functional unit 850 mm PrismaSeT G ComPacT enclosure INS320 to 400 fixed front rotary handle direct horizontal 3P 1 direct with long terminal
shield 9850 mm PrismaSeT G ComPacT enclosure INS320 to 400 fixed front rotary handle direct horizontal 4P 1 direct with long terminal shield 9850
mm PrismaSeT G ComPacT cabinet INS320 to 400 fixed front rotary handle direct horizontal 3P 1 direct with long terminal
shield 6850 mm PrismaSeT G ComPacT cabinet INS320 to 400 fixed front rotary handle direct horizontal 4P 1 direct with terminal shield long
6850 mm PrismaSeT G ComPacT INS500…630 enclosure fixed front rotary handle direct horizontal 3P 1 direct with long terminal shield 9
850 mm PrismaSeT G ComPacT INS500…630 enclosure fixed front rotary handle direct horizontal 4P 1 direct with long terminal shield 9
850 mm PrismaSeT G ComPacT INS500…630 enclosure fixed front rotary handle direct horizontal 3P 1 direct with long terminal shield 6
850 mm PrismaSeT G ComPacT INS500…630 cabinet fixed front rotary handle direct horizontal 4P 1 direct with terminal
shield 6850 mm long PrismaSeT G ComPacT INV320 to 400 cabinet fixed front rotary handle direct horizontal 3P 1 direct with terminal
shield 9850 mm long PrismaSeT G ComPacT INV320 to 400 enclosure fixed front rotary handle direct horizontal 4P 1 direct with long terminal shield 9
850 mm PrismaSeT G ComPacT INV320 enclosure at 400 fixed front rotary handle direct horizontal 3P 1 direct with long terminal
shield 6850 mm PrismaSeT G ComPacT INV320 enclosure at 400 fixed front rotary handle direct horizontal 4P 1 direct with long terminal shield 6850
mm PrismaSeT G cabinet ComPacT INV500…630 fixed front rotary handle direct horizontal 3P 1 direct with long terminal
shield 9850 mm PrismaSeT G cabinet ComPacT INV500…630 fixed front rotary handle direct horizontal 4P 1 direct with long terminal
shield 9850 mm PrismaSeT G ComPacT INV500…630 enclosure fixed front rotary handle direct horizontal 3P 1 direct with long terminal shield 6
850 mm PrismaSeT G enclosure ComPacT INV500…630 fixed front rotary handle direct horizontal 4P 1 direct with long terminal shield 6
number of vertical modules (50 mm) 6
width (w) 850 mm
Colour White (RAL 9003)
mounting position horizontal
Poles description 1 x3P: support mounting plate: INS320 to 400 horizontal installation
1 x4P: support mounting plate: INS320 to 400 horizontal installation
1 x3P: support mounting plate: INS500…630 horizontal installation
1 x4P: support mounting plate: INS500…630 horizontal installation
1 x3P: mounting plate support: INV320 to 400 horizontal installation
1 x4P: mounting plate support: INV320 to 400 horizontal installation
1 x3P: mounting plate support: INV500…630 horizontal installation
1 x4P: mounting plate support: INV500 …630 horizontal installation
Environment
degree of protection (ip) IP30
product certificates TO STAY
standards CEI 61439-2
CEI 61439-1
protective treatment Electrophoresis and heat-cured epoxy-polyester powder
