LVS03217 – Schneider Electric

EAN: 3606481872760
43,39 € KM-ta
53,81 € KM-ga

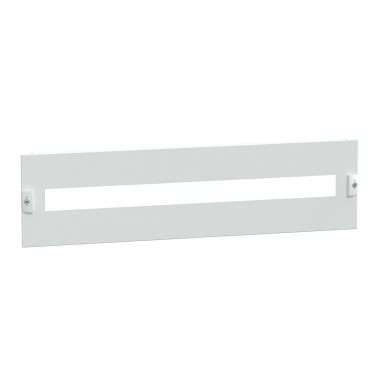

PrismaSeT G Active - Väljalõigatud moodulplaat - 4M - L850-RAL9003 - Schneider Electric
 Korvis
53,81 €
SPETSIFIKATSIOONID
Main
Accessory category Installation accessory
product range PrismaSet G
Range PrismaSet
type of product or equipment Chestplate
type of breastplate Modular
product installed Acti 9: fixed modular device
Multi 9: fixed modular device
ComPacT: fixed INS100 - control: direct front rotary handle - vertical installation
ComPacT: fixed INS125 - control: direct front rotary handle - vertical installation
ComPacT: fixed INS160 - control: front rotary handle direct - vertical installation
ComPacT: fixed INS40 - control: front rotary handle direct - vertical installation
ComPacT: fixed INS63 - control: front rotary handle direct - vertical installation
Complementary
9 mm pitches 72
range compatibility PrismaSeT (PrismaSeT G) housing
surface finish Matte
Textured
description of the box/cabinet Cabinet - width 850 mm
batch quantity Pack of 1
Handle front plate colour 200 mm
connection position Direct connection
product weight 1,22 kg
functional unit 850 mm PrismaSeT G ComPacT INS100 enclosure fixed front rotary handle direct vertical 3P 4 direct 4
850 mm PrismaSeT G ComPacT INS100 enclosure fixed front rotary handle direct vertical 4P 4 direct 4
850 mm PrismaSeT G ComPacT INS125 enclosure fixed front rotary handle direct vertical 3P 4 direct 4850 mm PrismaSeT
G ComPacT INS125 cabinet fixed front rotary handle direct vertical 4P 4 direct
4850 mm PrismaSeT G ComPacT INS160 cabinet fixed front rotary handle direct vertical 3P 4 direct
4850 mm PrismaSeT G ComPacT INS160 cabinet fixed front rotary handle direct vertical 4P 4 direct 4
850 mm PrismaSeT G cabinet ComPacT INS40 fixed front rotary handle direct vertical 3P 4 direct 4
850 mm PrismaSeT G ComPacT INS40 enclosure fixed front rotary handle direct vertical 4P 4 direct 4
850 mm PrismaSeT G ComPacT INS63 enclosure fixed front rotary handle direct vertical 3P 4 direct 4
850 mm PrismaSeT G ComPacT INS63 enclosure fixed front rotary handle direct vertical 4P 4 direct
4850 mm PrismaSeT G Acti 9 enclosure fixed modular device 72 direct 4 850
mm PrismaSeT G Multi enclosure 9 fixed modular device 72 direct 4
number of vertical modules (50 mm) 4
width (w) 850 mm
Colour White (RAL 9003)
number of 18 mm modules per row 36
Poles description 4 x3P: rail modulaire support: INS100 vertical installation
4 x4P: rail modulaire support: INS100 vertical installation
4 x3P: rail modulaire support: INS125 vertical installation
4 x4P: rail modulaire support: INS125 vertical installation
4 x3P: rail modulaire support: INS160 vertical installation
4 x4P: rail modulaire support: INS160 vertical installation
4 x3P: rail modulaire support: INS40 vertical installation
4 x4P: rail modulaire support: INS40 vertical installation
4 x3P: rail modulaire support: INS63 vertical installation
4 x4P: rail modulaire support: INS63 vertical installation
Environment
degree of protection (ip) IP30
product certificates TO STAY
standards CEI 61439-1
CEI 61439-2
protective treatment Electrophoresis and heat-cured epoxy-polyester powder
