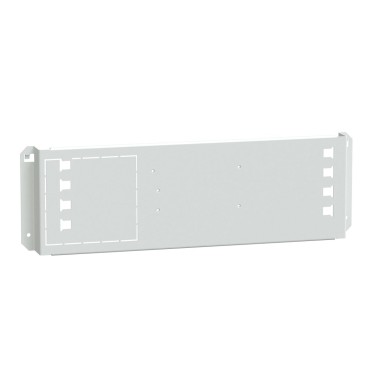

LVS03021 - Kinnitusplaat, PrismaSeT G, NSXm/Vigi/SDx 160A jaoks, horisontaalne fikseeritud, pööratav käepide, 3M, W600/W850mm - Schneider Electric - Kinnitusplaat, PrismaSeT G, NSXm/Vigi/SDx 160A jaoks, horisontaalne fikseeritud, pööratav käepide, 3M, W600/W850mm - Schneider Electric - 0
LVS03021 - Kinnitusplaat, PrismaSeT G, NSXm/Vigi/SDx 160A jaoks, horisontaalne fikseeritud, pööratav käepide, 3M, W600/W850mm - Schneider Electric - Kinnitusplaat, PrismaSeT G, NSXm/Vigi/SDx 160A jaoks, horisontaalne fikseeritud, pööratav käepide, 3M, W600/W850mm - Schneider Electric - 0
Tellimisel

LVS03021 – Schneider Electric

EAN: 3606481871473
31,03 € KM-ta
38,48 € KM-ga
Kinnitusplaat, PrismaSeT G, NSXm/Vigi/SDx 160A jaoks, horisontaalne fikseeritud, pööratav käepide, 3M, W600/W850mm - Schneider Electric
38,48 €
SPETSIFIKATSIOONID
Main
Accessory category Installation accessory
product range PrismaSet G
Range PrismaSet
type of product or equipment mounting plate
solid frame type Dedicated
description d'installation Enclosure - width 600 mm Enclosure -
width 600 mm
Enclosure - width 850 mm
Enclosure + sheath - width 600 + 300 mm Enclosure + sheath -
width 600 + 300 mm
number of vertical modules 3 module(s): NSXm without earth leakage protection , direct in 600 mm Wide enclosure
3 module(s): NSXm without earth leakage protection , direct in 600 mm Wide enclosure
3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Wide enclosure +
3 module(s) duct: NSXm without earth leakage protection , direct in 600 + 300 mm Wideenclosure +
3 module(s) duct: NSXm without earth leakage protection , direct in 850 mm Wideenclosure
product installed ComPacT: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation
Complementary
range compatibility PrismaSeT (PrismaSeT G) housing
surface finish Matte
Textured
Handle front plate colour 150 mm
matter Galvanised steel
functional unit 600 mm PrismaSeT G ComPacT NSXm cabinet without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm
600 mm PrismaSeT G ComPacT NSXm cabinet without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm
850 mm PrismaSeT G ComPacT NSXm cabinet without fixed horizontal direct rotary handle 3P or 4P 1 direct 3 25 mm
600 + 300 mm PrismaSeT G cabinet + ComPacT NSXm
sheath without fixed rotary handle direct horizontal 3P or 4P 1 direct 3 25 mm
width (w) 470 mm
Colour White (RAL 9003)
Poles description 1 x3P ou 4P: fixe NSXm horizontal installation
Environment
product certificates TO STAY
standards CEI 61439-2
protective treatment Electrophoresis and heat-cured epoxy-polyester powder
