XXW54P3HPL05 – Telemecanique
216,13 € KM-ta
268,00 € KM-ga

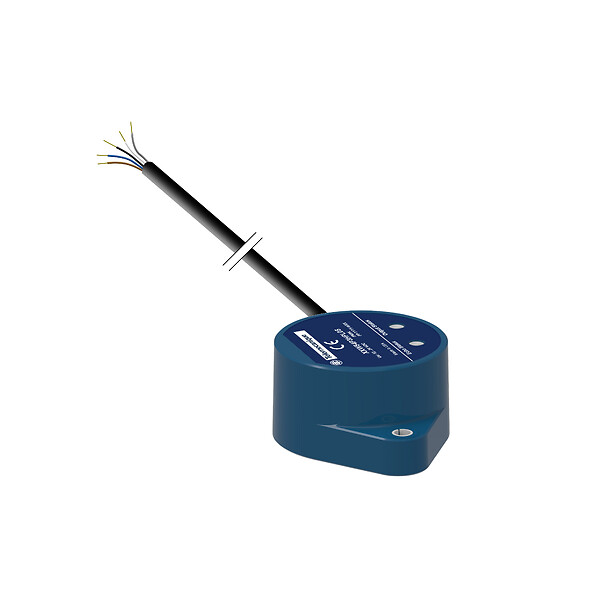

Ultrasonic sensor, plastic, Wide Beam Φ54, 3m, 0.5…4.5V+PNP, 0.5m cable - Telemecanique
Ultrasonic sensor, plastic, Wide Beam Φ54, 3m, 0.5…4.5V+PNP, 0.5m cable.
This product is compatible with XXZKITDM6
SPETSIFIKATSIOONID
Main
Series name
Application
sensor name
XXS
detection system
Diffuse
Complementary
Product certifications
E2cULus
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Analogue output function
0.5...4.5 V
Current consumption
30 mA
marking
CE
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Valox
Material
Plastic
function available
Software configurable
switching frequency
<= 1.6 Hz
Discrete output type
PNP
Front material
Ultem
electrical connection
Cable 5 pins, 0.5 m cable length
Maximum switching capacity
>= 2 kOhm overload and short-circuit protection
Minimum size of detected object
Cylinder diameter 12 mm at 3 m
Sensor type
Ultrasonic sensor
Voltage drop
2 VOLT
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Setting-up
Configurator software
Sensor design
Ø 54 mm
Status led
Output state: 1 LED (yellow), echo state and power ON: 1 LED (green/white)
Wiring technique
5-wire
Type of output signal
Analogue + discrete
Environment
ip degree of protection
IP65 conforming to IEC 60529, IP67, IP69K
Range of product
Telemecanique Ultrasonic sensors XX
standards
CSA C22.2 No 14UL 508IEC 60947-5-2
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
