XXW54P3APL01DM6 – Telemecanique
298,56 € KM-ta
370,21 € KM-ga

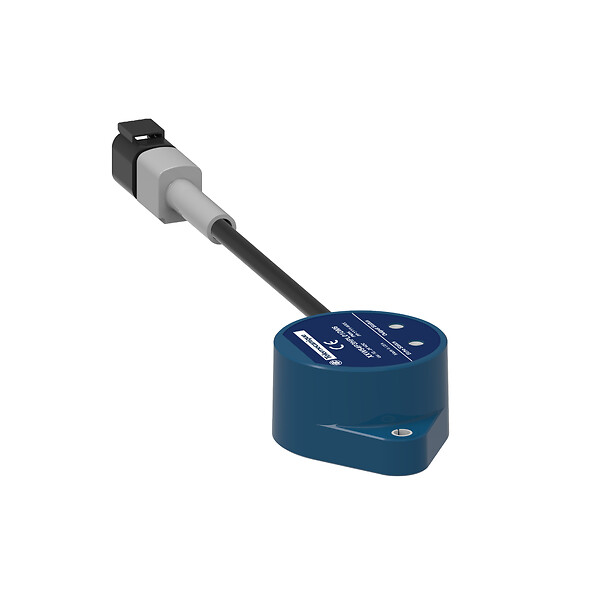

Ultrasonic sensor, plastic, Wide Beam Φ54, 3m, 4…20mA+PNP, 0.15m cable+ 6pin Deutsch male connector - Telemecanique
Ultrasonic sensor, plastic, Wide Beam Φ54, 3m, 4…20mA+PNP, 0.15m cable+ 6pin Deutsch male connector.
This product is compatible with XXZKITDM6
SPETSIFIKATSIOONID
Main
Series name
Application
sensor name
XXS
detection system
Diffuse
Complementary
Product certifications
E2cULus
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Analogue output function
4...20 mA
Current consumption
30 mA
marking
CE
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Valox
Material
Plastic
function available
Software configurable
switching frequency
<= 1.6 Hz
Discrete output type
PNP
Front material
Ultem
electrical connection
Cable DTM04-6P 5 pins, 0.15 m cable length
Maximum switching capacity
250 Ohm with 12 V DC overload and short-circuit protection, 850 Ohm with 24 V DC
Minimum size of detected object
Cylinder diameter 12 mm at 3 m
Sensor type
Ultrasonic sensor
Voltage drop
2 VOLT
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Setting-up
Configurator software
Sensor design
Ø 54 mm
Status led
Output state: 1 LED (yellow), echo state and power ON: 1 LED (green/white)
Wiring technique
5-wire
Type of output signal
Analogue + discrete
Environment
ip degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Range of product
Telemecanique Ultrasonic sensors XX
standards
CSA C22.2 No 14UL 508IEC 60947-5-2
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
