XXTF1A8M12L – Telemecanique
97,41 € KM-ta
120,79 € KM-ga

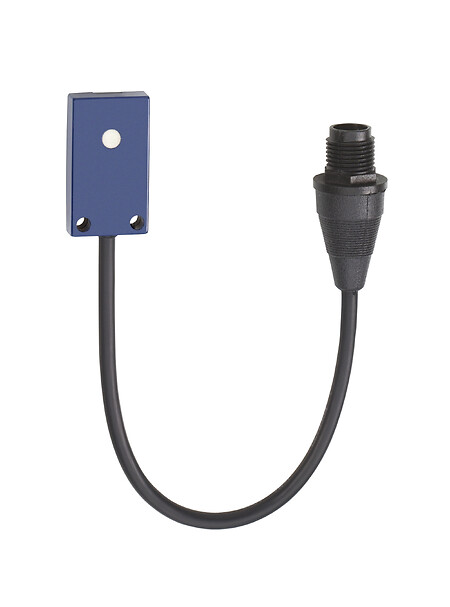

Ultrasonic sensors XX, ultrasonic sensor parallelepipedic 7x19x33, transmitter Sn 0.2 m, M12 connector - Telemecanique
Ultrasonic sensors XX, ultrasonic sensor parallelepipedic 7x19x33, transmitter Sn 0.2 m, M12 connector
SPETSIFIKATSIOONID
Main
Series name
General purpose
sensor name
XXT
detection system
Thru beam (need a receiver)
Complementary
Product certifications
UL
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
<= 50 mA
marking
CE
Enclosure material
ULTEM
Material
Plastic
Front material
Epoxy
electrical connection
Male connector M12 4 pins
Minimum size of detected object
Cylinder diameter 12 mm at 0.2 m
Sensor type
Ultrasonic sensor transmitter
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Flat form 33 x 19 x 7.6
Wiring technique
2-wire
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Ultrasonic sensors XX
standards
IEC 60947-5-2
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
