XXS18P1VM12 – Telemecanique
178,74 € KM-ta
221,63 € KM-ga

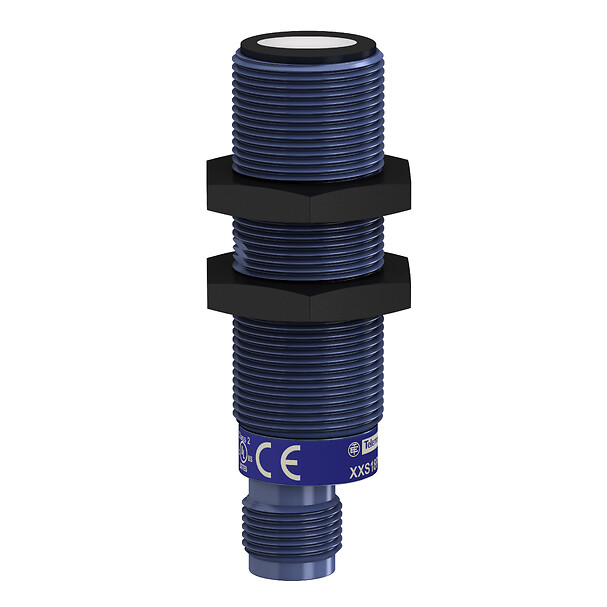

Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 0 10 V, SYNC, connector M12 - Telemecanique
Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 0 10 V, SYNC, connector M12.
This product is compatible with XSZB118, XUZ2001, XUZ2003, XUZA118, XUZB2003, XXZB118, XXZBOX01, XXZKIT01, XZCC12FCM40B, XZCC12FCP40B, XZCC12FDM40B, XZCC12FDP40B, XZCP1141L2, XZCP1241L2
SPETSIFIKATSIOONID
Main
Series name
General purpose
sensor name
XXS
detection system
Diffuse
Complementary
Product certifications
E2RCMcULusEcolab
[us] rated supply voltage
24 V DC with reverse polarity protection
Analogue output function
0...10 V
Current consumption
30 mA
marking
CE
Enclosure material
PBT
Material
Plastic
function available
Software configurablewith synchronisation mode
Front material
Resinepoxyrubber
electrical connection
Male connector M12 5 pins
Maximum switching capacity
>= 1 kOhm overload and short-circuit protection
Minimum size of detected object
Cylinder diameter 1 mm at 600 mm
Sensor type
Ultrasonic sensor
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Setting-up
Configurator softwareteach mode
Sensor design
Cylindrical M18
Status led
Output state: 1 LED (yellow), echo state: 1 LED (green)
Wiring technique
5-wire
Type of output signal
Analogue
Environment
ip degree of protection
IP65 conforming to IEC 60529, IP67
Range of product
Telemecanique Ultrasonic sensors XX
standards
CSA C22.2 No 14UL 508IEC 60947-5-2
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
