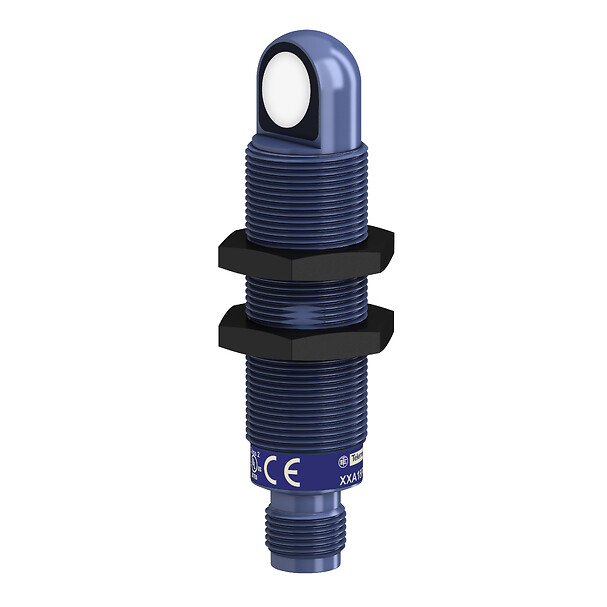

XXA18P1AM12 - Ultrasonic sensors XX, ultrasonic sensor cyl. 90 deg M18 - Telemecanique - Ultrasonic sensors XX, ultrasonic sensor cyl. 90 deg M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12 - Telemecanique - 0
XXA18P1AM12 - Ultrasonic sensors XX, ultrasonic sensor cyl. 90 deg M18 - Telemecanique - Ultrasonic sensors XX, ultrasonic sensor cyl. 90 deg M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12 - Telemecanique - 0
Tellimisel

XXA18P1AM12 – Telemecanique

240,45 € KM-ta
298,16 € KM-ga
Ultrasonic sensors XX, ultrasonic sensor cyl. 90 deg M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12 - Telemecanique
 Korvis
298,16 €
Ultrasonic sensors XX, ultrasonic sensor cyl. 90 deg M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12. This product is compatible with XSZB118, XUZ2001, XUZ2003, XUZA118, XUZB2003, XXZB118, XXZBOX01, XXZKIT01, XZCC12FCM40B, XZCC12FCP40B, XZCC12FDM40B, XZCC12FDP40B, XZCP1141L2, XZCP1241L2
SPETSIFIKATSIOONID
Main
Series name General purpose
sensor name XXA
detection system Diffuse (with 90° head)
Complementary
Product certifications E2RCMcULusEcolab
[us] rated supply voltage 12...24 V DC with reverse polarity protection
Analogue output function 4...20 mA
Current consumption 30 mA
marking CE
Enclosure material PBT
Material Plastic
function available Software configurablewith synchronisation mode
Front material Resinepoxyrubber
electrical connection Male connector M12 5 pins
Maximum switching capacity 250 Ohm with 12 V DC overload and short-circuit protection, 850 Ohm with 24 V DC
Minimum size of detected object Cylinder diameter 1 mm at 600 mm
Sensor type Ultrasonic sensor
Shock resistance 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Setting-up Configurator softwareteach mode
Sensor design Cylindrical M18
Status led Output state: 1 LED (yellow), echo state: 1 LED (green)
Wiring technique 5-wire
Type of output signal Analogue
Environment
ip degree of protection IP65 conforming to IEC 60529, IP67
Range of product Telemecanique Ultrasonic sensors XX
standards CSA C22.2 No 14UL 508IEC 60947-5-2
vibration resistance +/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
