XX230A22NA00M12 – Telemecanique
783,90 € KM-ta
972,04 € KM-ga

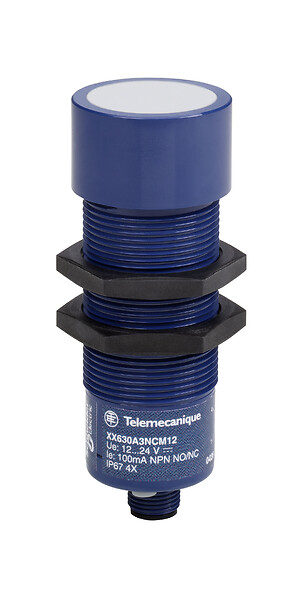

Ultrasonic sensor cylindrical M30 - 2 levels - Sn 2 m - 2 NO - M12 - Telemecanique
Ultrasonic sensor cylindrical M30 - 2 levels - Sn 2 m - 2 NO - M12.
This product is compatible with XSZB130, XUZ2001, XUZ2003, XUZB2030, XXZ30, XZCC12FCM40B, XZCC12FCP40B, XZCC12FDM40B, XZCC12FDP40B, XZCP1141L2, XZCP1241L2
SPETSIFIKATSIOONID
Main
product specific application
For 2 levels monitoring
Series name
General purpose
sensor name
XX2
detection system
Diffuse
Complementary
Product certifications
CCSAusUL
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
100 mA
marking
CE
Discrete output function
2 NO
Enclosure material
ULTEM
Material
Plastic
function available
Without synchronisation mode
Discrete output type
NPN
Front material
Silicone
thread type
M30 x 1.5
electrical connection
Male connector M12 4 pins
Minimum size of detected object
Cylinder diameter 1.6 mm at 0.635 m
Sensor type
Ultrasonic sensor
Voltage drop
1 VOLT
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Sensor design
Cylindrical M30
Status led
Output state: 1 LED (green/red (flashing)), setting-up assistance: 1 LED (green/red (flashing)), distance indication: 1 LED (yellow)
Wiring technique
4-wire
Type of output signal
Discrete
Environment
ip degree of protection
IP67 conforming to IEC 60529
Range of product
Telemecanique Ultrasonic sensors XX
standards
IEC 60947-5-2
vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
