Tellimisel
XUVU04M3PM8 – Telemecanique
372,24 € KM-ta
461,58 € KM-ga

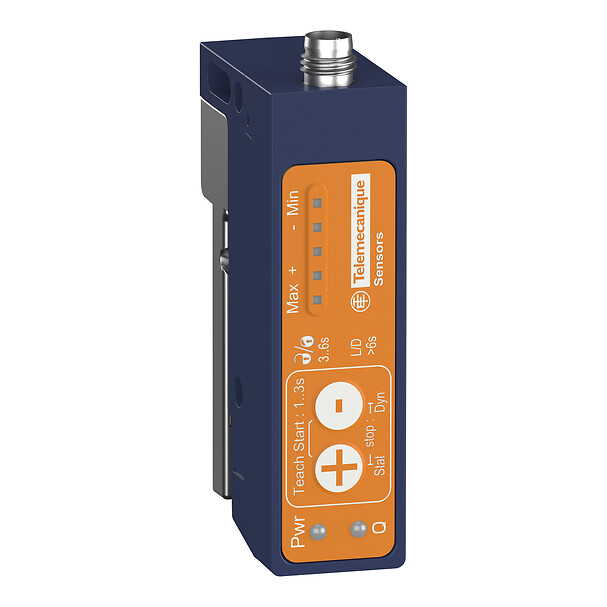

Ultrasonic label fork Depth 60mm Sn3mm PNP IOLink Connect M8 - Telemecanique
Ultrasonic label fork Depth 60mm Sn3mm PNP IOLink Connect M8
SPETSIFIKATSIOONID
Main
product specific application
Detection on a labelling machinedetection of transparent labelsdetection of labels
Series name
LABELLING DETECTIONApplication packaging
sensor name
XUV
detection system
Through beam
electronic sensor type
Photo-electric sensor
Complementary
Accuracy
at 240m/min (for 2 mm label length, 2 mm gap)m/mn
Product certifications
CEUKCAcULus
[us] rated supply voltage
-
Current consumption
0.05 mA
Output type
Discrete
Discrete output function
1 NO or 1 NC programmable
Enclosure material
Valoxzamak
Material
Valoxzamak
switching frequency
1.1 kHz
Discrete output type
PNP
switching capacity in ma
<= 100 mA
type of setting
Teach buttons or IO-Link
electrical connection
1 connector M8, 4 pins
Setting-up
Sensitivity by IO-Linksensitivity adjustment with teach mode
Sensor design
Fork
Status led
-
Type of output signal
Discrete
Supply circuit type
DC
Environment
Emission
Ultrasonic
ip degree of protection
IP65 conforming to EN/IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
