XUSL4MB30H121N - Telemecanique ⚡

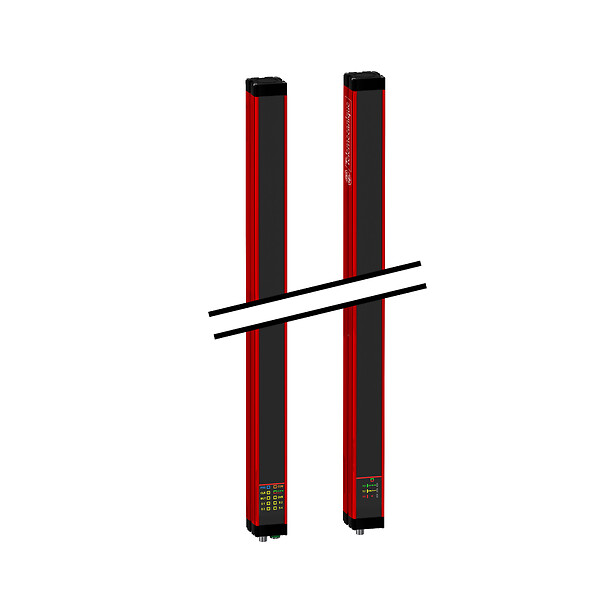

XUSL4MB30H121N - Safety light curtain type 4, Telemecanique Safety light curtains XUSL - Telemecanique - Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware config T4 R30 H=121 cm D4 12 m - Telemecanique - 0

Tellimisel

XUSL4MB30H121N – Telemecanique

2 047,39 € KM-ta

2 538,77 € KM-ga

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware config T4 R30 H=121 cm D4 12 m - Telemecanique

Korvis

2 538,77 €

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware config T4 R30 H=121 cm D4 12 m. This product is compatible with XUSZTR30

SPETSIFIKATSIOONID

Main

Device short name XUSL4M

Offer type Standard distance

product specific application For hand protection

detection system Transmitter-receiver system

Complementary

Kit composition adjustable mounting bracket(s), 1 receiver, 1 transmitter, 1 user guide with certificate of conformity on CD-ROM

Control type Selected by wiring

Product certifications CETÜVcULus

response time 17.6 ms

Product or component type Safety light curtain type 4

[us] rated supply voltage 24 V DC +/- 20 %

Current consumption 35 mA no-load transmitter, 85 mA no-load receiver, 900 mA with maximum load receiver

Output type 2 safety outputs OSSD solid-state PNP (arc suppression)

Housing colour Red RAL 3000

Fixing mode By fixing brackets

safety reliability data PFHd = 2.50E-8 1/h conforming to IEC 61508

Material Aluminium: casing, polycarbonate: front panel, polypropylene: end caps

output voltage 24 V

function available Test, muting, LED display of operating modes and faults

Local signalling 1 multi-colour LED transmitter, 10 dual colour LEDs receiver

electrical connection 1 male connector M12 5 pins transmitter, 2 female connectors M12 5 pins transmitter, 1 male connector M12 12 pins receiver, 3 female connectors M12 5 pins receiver

output circuit type DC

Voltage drop <0.5 V

Shock resistance 10 gn for 16 ms conforming to IEC 61496-1

Safety level Type 4 conforming to IEC 61496-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, category 4 conforming to ISO 13849-1, PL = e conforming to ISO 13849-1

Supply Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1

Type of start Automaticmanual

Environment

Directives 89/655/EEC - work equipment89/336/EEC - electromagnetic compatibility98/37/EEC - machinery

Emission IR LED 950 nm

ip degree of protection IP65, IP67

Range of product Telemecanique Safety light curtains XUSL

vibration resistance 0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
