XUSL4E30H076NM - Telemecanique ⚡

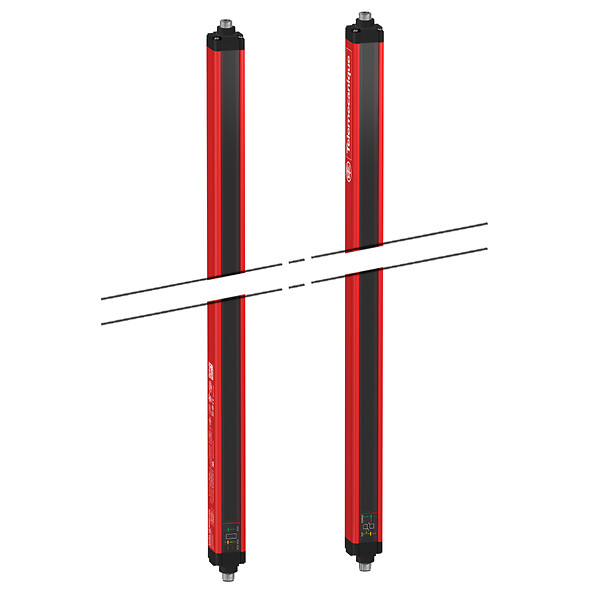

XUSL4E30H076NM - Safety light curtain type 4, Telemecanique Safety light curtains XUSL - Telemecanique - Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Master for hand protection, Hp = 760 mm, R=30 mm - Telemecanique - 0

Tellimisel

XUSL4E30H076NM – Telemecanique

1 123,82 € KM-ta

1 393,54 € KM-ga

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Master for hand protection, Hp = 760 mm, R=30 mm - Telemecanique

Korvis

1 393,54 €

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Master for hand protection, Hp = 760 mm, R=30 mm. This product is compatible with XUSZSC138, XUSZWPE075

SPETSIFIKATSIOONID

Main

Device short name XUSL4E

Offer type Standard distance

product specific application For hand protection

detection system Transmitter-receiver system

Complementary

Kit composition adjustable mounting bracket(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM

Control type Selected by wiring

Product certifications CETÜVcULus

Product or component type Safety light curtain type 4

[us] rated supply voltage 24 V DC +/- 20 %

Current consumption 42 mA no-load transmitter, 83 mA no-load receiver, 42 mA transmitter, 900 mA with maximum load receiver

marking CE

Output type 2 safety outputs OSSD solid-state PNP (arc suppression)

Housing colour Red RAL 3000

Fixing mode By fixing brackets

safety reliability data PFHd = 1.19E-8 1/h conforming to IEC 61508

Material Aluminium: casing, polycarbonate: front panel, polypropylene: end caps

output voltage 24 V

function available Test, muting through external safety module XPSLCMUT1160, LED display of operating modes and faults

Local signalling 1 multi-colour LED transmitter, 2 dual colour LEDs receiver

Topology Daisy chain master

electrical connection 1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver

output circuit type DC

Voltage drop <0.5 V

Shock resistance 10 gn for 16 ms conforming to IEC 61496-1

Safety level Type 4 conforming to IEC 61496-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, category 4 conforming to ISO 13849-1, PL = e conforming to ISO 13849-1

Supply Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1

Type of start Automaticmanual

Environment

Directives 89/655/EEC - work equipment89/336/EEC - electromagnetic compatibility98/37/EEC - machinery

Emission IR LED 950 nm

ip degree of protection IP65, IP67

Range of product Telemecanique Safety light curtains XUSL

vibration resistance 0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
