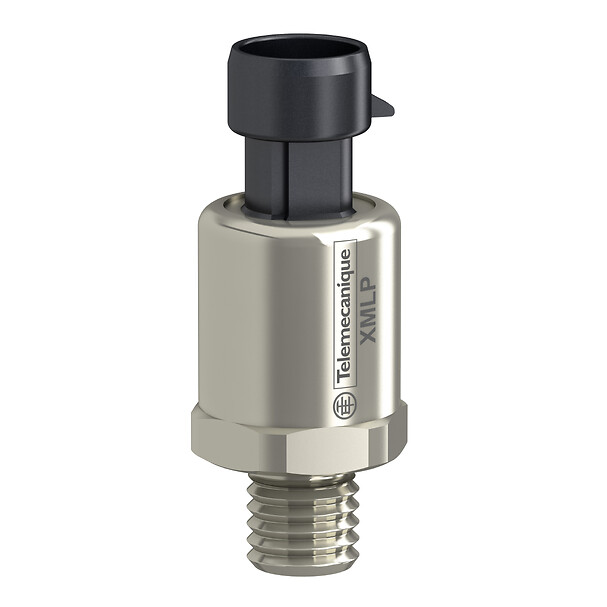

XMLP1K0PP730 - Pressure transmitter - XMLP - 1000psi - 1/4
XMLP1K0PP730 - Pressure transmitter - XMLP - 1000psi - 1/4
Tellimisel

XMLP1K0PP730 – Telemecanique

100,35 € KM-ta
124,44 € KM-ga
Pressure transmitter - XMLP - 1000psi - 1/4"18NPT - 0..10V - Packard - set 1 - Telemecanique
 Korvis
124,44 €
Pressure transmitter - XMLP - 1000psi - 1/4"18NPT - 0..10V - Packard - set 1
SPETSIFIKATSIOONID
Main
Fluid connection type 1/4" - 18 NPT (male)
controlled fluid Fresh water (0-135 °C), air (-40-135 °C), hydraulic oil (-40-135 °C), gas (-40-135 °C), refrigeration fluid (-40-135 °C)
Type of packing Individual
pressure sensor name XMLP
pressure sensor type Pressure transmitter
Complementary
Accuracy 0.1 % of the measuring range
local display Without
Product certifications CERCMcULus
Product or component type Electronic pressure sensors
[us] rated supply voltage 24 V DC SELV (voltage limits: 12-33 V)
Analogue output function 0...10 V, 3-wire
Current consumption < 7 mA
Quantity per set Set of 1
Drift of the sensitivity +/- 0,02 % of measuring range/°K
Drift of the zero point +/- 0,02 % of measuring range/°K
Electrical circuit type Control circuit
measurement accuracy +/- 0,5 % de la plage de mesure
Operating position Any position
Materials in contact with fluid Stainless steel AISI 316L
electrical connection 1 male connector Packard Metripack 150 3 pins
Shock resistance 100 gn for 11 ms conforming to IEC 60068-2-27
Response time on output <= 2 ms 10...90 % of full scale
Type of output signal Analogue
Protection type Load short-circuitreverse polarity
Environment
ip degree of protection IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product Telemecanique Pressure sensors XM
electromagnetic compatibility Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...3000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.01...80 MHz
standards IEC 61326-2-3NSF ANSI 61
vibration resistance 20 gn (f = 15-2000 Hz) conforming to IEC 60068-2-6
protective treatment TC
