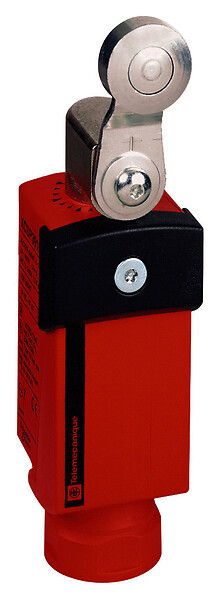

XCSP3921G13 - SAFETY LIMIT SWITCH - WITH 1 NC 1 NC 1 NO - Telemecanique - SAFETY LIMIT SWITCH - WITH 1 NC 1 NC 1 NO - Telemecanique - 0
XCSP3921G13 - SAFETY LIMIT SWITCH - WITH 1 NC 1 NC 1 NO - Telemecanique - SAFETY LIMIT SWITCH - WITH 1 NC 1 NC 1 NO - Telemecanique - 0
Tellimisel

XCSP3921G13 – Telemecanique

25,42 € KM-ta
31,53 € KM-ga
SAFETY LIMIT SWITCH - WITH 1 NC 1 NC 1 NO - Telemecanique
 Korvis
31,53 €
SAFETY LIMIT SWITCH - WITH 1 NC 1 NC 1 NO
SPETSIFIKATSIOONID
Main
design Compact
Protection technology Plastic protective cover, secured by 5-lobe socket head safety screw
component name XCSP
head type Rotary head
Complementary
Product certifications CSAUL
Product or component type Safety limit switch
cable entry 1 entry tapped for Pg 13.5
Enclosure material Plastic
Clamping connection capacity 1 x 0.34...2 x 0.75 mm²
contact operation Snap action
Contacts type and composition 1 NC + 1 NC + 1 NO
Electrical shock protection class Class II
safety reliability data B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
body material Plastic
Material Plastic
Type of operator Steel roller lever
Ik degree of protection IK04 conforming to IEC 62262
contact code designation B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A
head material Zamak
repeat accuracy 0.1 mm on tripping points, 1 million operating cycles for head with end plunger
Positive opening With NC contact
electrical connection Terminal
Switch actuation By 30° cam
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals 25 MOhm conforming to IEC 60255-7 category 3
Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Environment
ip degree of protection IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Range of product Telemecanique Safety switches XCS
standards CSA C22.2 No 14UL 508IEC 60947-5-1EN 1088/ISO 14119IEC 60204-1
vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
protective treatment TC
