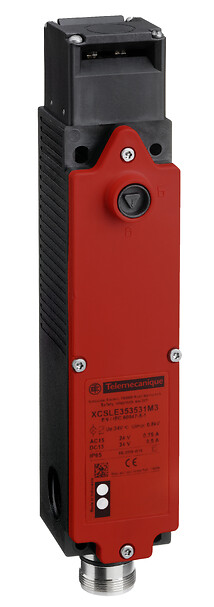

XCSLE353531M3 - Telemecanique ⚡

XCSLE353531M3 - Safety switch, Telemecanique Safety switches XCS - Telemecanique - Safety switch, Telemecanique Safety switches XCS, plastic key operated solenoid XCSLE, 2NC+4 NO, slow, M23 connect., 24 V - Telemecanique - 0

Tellimisel

XCSLE353531M3 – Telemecanique

141,39 € KM-ta

175,33 € KM-ga

Safety switch, Telemecanique Safety switches XCS, plastic key operated solenoid XCSLE, 2NC+4 NO, slow, M23 connect., 24 V - Telemecanique

Korvis

175,33 €

Safety switch, Telemecanique Safety switches XCS, plastic key operated solenoid XCSLE, 2NC+4 NO, slow, M23 connect., 24 V. This product is compatible with XCSZ01, XCSZ02, XCSZ03, XZCC23FCM190S, XZCC23FDM190S

SPETSIFIKATSIOONID

Main

design Slim

Signalling circuit voltage 24 V

Solenoid contacts type and composition 1 NC + 2 NO (slow-break, break before make)

component name XCSLE

head type Key operated turret head

Complementary

Product certifications CSATÜVUL

Product or component type Safety switch

[us] rated supply voltage 24 V - 15...10 %

Actuator forcible withdrawal rtc 1400 NEWTON

Locking options description With interlocking, locking by solenoid

contact operation Slow-break, break before make

Contacts type and composition 1 NC + 2 NO

Electrical shock protection class Class I conforming to IEC 61140

safety reliability data B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear

body material PA (polyamide)

Material Plastic

Local signalling 1 LED (orange) for actuator withdrawn, 1 LED (green) for actuator inserted and locked

head material PA (polyamide)

Electromagnet interlocking Locking on de-energisation and unlocking on energisation of solenoid

Positive opening With NC contact

electrical connection Male connector M23, 19 pins

Maximum load current <= 15 A

Operating rate 10 cyc/mn for maximum durability

Shock resistance 10 gn for 11 ms conforming to IEC 60068-2-27

Safety level Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 conforming to IEC 61508

Supply frequency 50/60 Hz

Signalling circuit type AC/DC

Supply voltage type AC/DC

Environment

ip degree of protection IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Range of product Telemecanique Safety switches XCS

standards CSA C22.2 No 14UL 508IEC 62061IEC 60947-5-1ISO 13849-1EN 1088/ISO 14119IEC 60204-1

vibration resistance 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

protective treatment TC
