XCJ127C – Telemecanique
9,04 € KM-ta
11,21 € KM-ga

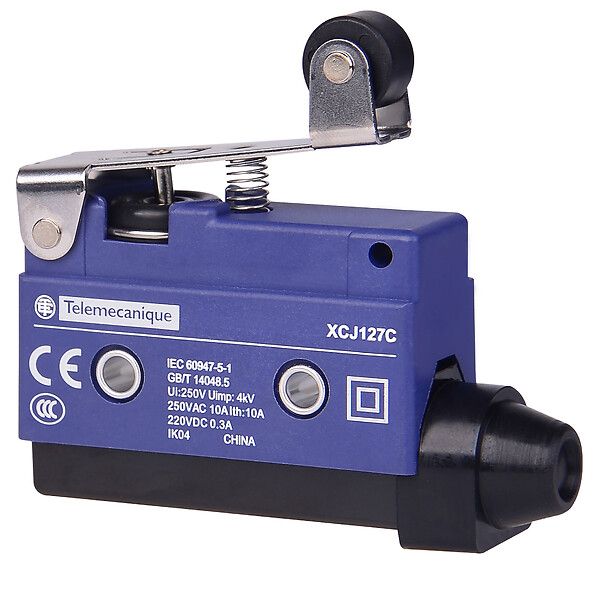

Short flat lever, roller end plunger - Telemecanique
Short flat lever, roller end plunger
SPETSIFIKATSIOONID
Main
Body type
Fixed
Device short name
XCJ
product specific application
Light to medium duty
Series name
Basic
head type
Plunger head
Complementary
Product or component type
Limit switch
cable entry
1 flexible rubber cable gland, cable outer diameter: 8.5-10.5 mm
Contacts insulation form
C
marking
CCCCE
contact operation
Snap action
Electrical shock protection class
Class II conforming to IEC 60947-5-1
Fixing mode
By the body
Material
Plastic
Type of operator
Roller lever plunger thermoplastic short and flat
contact code designation
A300, AC (Ue = 240 V), Ie = 10 A, Ithe = 10 A conforming to IEC 60947-5-1, R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1
Positive opening
Without
electrical connection
Screw-clamp terminals
Movement of operating head
Linear
Operating rate
120 CYCLE_PER_MINUTE
Switch actuation
By 30° cam
Type of approach
Lateral approach, 1 direction
Shock resistance
10 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm
Terminals description iso n°1
(NO-NC-C)OF
Environment
ip degree of protection
IP40 conforming to IEC 60529
Range of product
OsiSense XC
standards
IEC 60947-5-1GB 14048.5
vibration resistance
+/- 1.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
