XCE146CTQ – Telemecanique
6,54 € KM-ta
8,11 € KM-ga

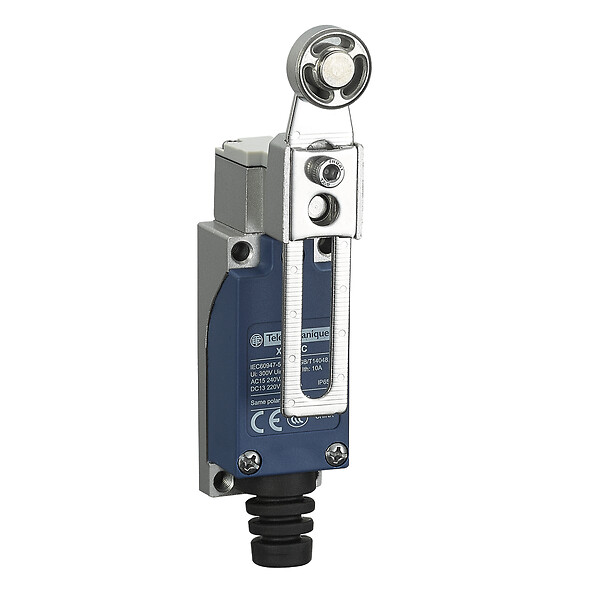

Variable length steel roller lever, sold in lots of 10 - Telemecanique
Variable length steel roller lever, sold in lots of 10
SPETSIFIKATSIOONID
Main
Body type
Fixed
Device short name
XCE
product specific application
Medium duty
Series name
Basic
head type
Rotary head
Complementary
Product or component type
Limit switch
cable entry
1 flexible rubber cable gland, cable outer diameter: 6-9 mm
Contacts insulation form
Za
marking
CCCCE
contact operation
Snap action
Electrical shock protection class
Class I conforming to IEC 60947-5-1
Fixing mode
By the body
Material
Plastic and metal
Type of operator
Spring return roller lever steel variable length
contact code designation
A300, AC (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1
Positive opening
Without
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1.5 mm²
Movement of operating head
Rotary
Operating rate
120 CYCLE_PER_MINUTE
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Resistance across terminals
25 MOhm
Terminals description iso n°1
(3-4-1-2)OF
Environment
ip degree of protection
IP65 conforming to IEC 60529
Range of product
OsiSense XC
standards
IEC 60947-5-1GB 14048.5
vibration resistance
+/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
