9007AB21 – Telemecanique
47,76 € KM-ta
59,22 € KM-ga

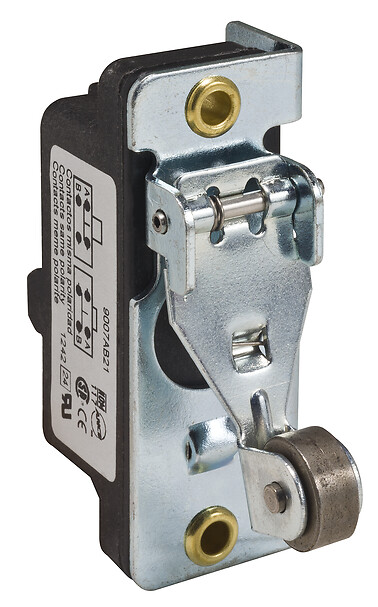

Snap limit switch, 9007, 600 VAC 15amp ab +options - Telemecanique
Snap limit switch, 9007, 600 VAC 15amp ab +options
SPETSIFIKATSIOONID
Main
Body type
Fixed
Device short name
9007AO/CO
Series name
Heavy duty
Complementary
Product or component type
Snap limit switch
nema degree of protection
NEMA 1 conforming to Nema type 250
Contacts material
Silver contacts
contact operation
Snap action
Contacts type and composition
NC-NO, switch function: SPDT-DB
Fixing mode
By the body
body material
Cast zinc
Material
Metal
Type of operator
Spring return roller lever plunger metal RH bracket + 0.22" roller
Mounting mode
Not applicable
Positive opening
Without
electrical connection
1-2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Movement of operating head
Linear
Operator profile
Plunger head
Switch actuation
By 30° cam
Type of approach
Traverse approach, 2 directions
Terminals description iso n°1
(3-4)NO(1-2)NC
Environment
ip degree of protection
IP20 conforming to IEC 60529
Range of product
9007
